AS 1974-1976 PDF

$18.00

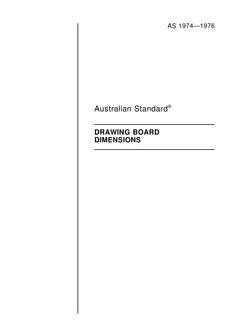

Drawing board dimensions
standard by Standards Australia, 01/01/1976

Available Formats: PDF   In Stock

Category:

NOTE: Our website provide PDF immediately download, sometimes when the payment is processed and you did not receive the file, please do not worry and our customer service will send to you via email within 6 hours.

Description

Provides for three types of board – Type X for T-squares, and Types Y and Z for different types of drafting machines. Sizes are suitable in all types for use with A0 and A1 sheet sizes and a Type X for use with A2 sheets is also listed. Dimensional tolerances, including flatness of working surface and straightness of T-square edge on Type X boards, are specified.

Product Details

Edition:
1st
Published:
01/01/1976
ISBN(s):
0726211087
Number of Pages:
4
File Size:
1 file , 30 KB
Product Code(s):
10160188, 10160187, 10160197
